How to Build a Backyard Sauna on a Budget

By Timothy Munene

How to Build a Backyard Sauna on a Budget

✓ Written by: Timothy Munene, Senior Heat Therapy Writer

✓ Expert Contributor: Emily Buckley, Copywriting Specialist

✓ Expert Verified By: Cayla Garcia, MScN, NBC-HWC

✓ Fact Checked By: Louis Sepulveda, NASM-CPT, NASM-CES, CPR/AED Certified

Editorial disclosure: This guide is published by Sun Home Saunas, which sells ready-built indoor and outdoor saunas. It is written as a practical, brand-neutral construction resource for people who want to build their own; the few product references are clearly marked. Electrical work must be performed by a licensed electrician, and all heater sizing, clearances, ventilation, and glazing must follow your chosen heater's installation manual and your local building and electrical codes, which are the final authority.

How to build a backyard sauna on a budget, short answer: A basic 4-by-6-foot, two-person backyard sauna typically costs roughly $3,000–$5,000 for a budget build or $5,500–$9,000 for a mid-range build, including materials and licensed electrical work; most owner-built projects land around $4,000–$7,000. The build uses economical lumber, a simple gravel or paver base, an electric heater, and owner-performed construction (a bare indoor conversion that reuses an existing wall can run less). The major cost centers are framing and exterior materials, insulation and interior paneling, the heater, the electrical circuit, the door, and roofing. The electrical connection should be completed by a licensed electrician, and all clearances and room-sizing requirements must follow the selected heater's installation manual. This guide walks the whole build around one concrete 4×6 example, with a bill of materials, an itemized budget, and step-by-step construction.

The Budget Backyard-Sauna Plan (4×6, Two-Person)

We will build a traditional, electric-heated hot room, because it is the most common budget backyard build and the easiest to size and ventilate. (Infrared saunas are a different product: they heat the body with panels rather than heating the air, so they are sized by occupancy and bench space, not by room volume, and are not covered as a build here.)

  • Footprint: 4 ft × 6 ft (about 24 sq ft), which comfortably seats two on an L-bench or one full-length reclined bather.
  • Interior height: 7 ft ceiling. A lower ceiling (around 7 ft) keeps the usable heat near the benches instead of stacking it out of reach.
  • Interior volume: 4 × 6 × 7 = 168 cubic feet (about 4.76 m³) before accounting for the glass door.
  • Wall system: 2×4 framing, mineral-wool insulation, foil vapor barrier, air gap, and tongue-and-groove softwood paneling (detailed below).
  • Heat source: a 6 kW electric heater for a well-insulated build; step up to 8 kW for a cold-climate outdoor build (sizing math below).

Complete Bill of Materials

Quantities below are for the 4×6×7 example. Prices are 2026 planning ranges from major home-improvement retailers and specialty sauna suppliers; see the cost methodology note that follows.

Item Approx. quantity Planning price
2×4 framing lumber (floor, walls, roof, blocking) ~18–24 studs + plates $150–$300
Exterior sheathing (½" plywood or OSB) ~6–8 sheets $180–$350
House wrap / weather-resistive barrier 1 small roll $40–$80
Exterior cladding (cedar, thermowood, or charred pine) ~150–180 sq ft $450–$1,400
Roofing (metal panel or shingles + underlayment) ~30–40 sq ft + overhang $150–$400
Mineral wool insulation (R-13 walls, R-19+ ceiling) ~200 sq ft $150–$300
Aluminum foil vapor barrier + foil tape 1 roll (~200–300 sq ft) $40–$90
Furring strips for air gap (1×2 or 1×3) ~250 lin ft $60–$120
Tongue-and-groove interior paneling (cedar/hemlock/aspen/spruce) ~200 sq ft walls + ceiling $450–$1,200
Bench lumber (2×4 frames; aspen/cedar/abachi tops) ~40–50 board ft $120–$300
Prehung sauna door with safety (tempered) glass 1 $150–$450
Electric heater (6 kW, e.g., Harvia KIP or equivalent) + stones 1 $400–$800
Ventilation (2 vents + adjustable dampers; optional inline exhaust fan) 1 set $60–$200
Stainless/galvanized fasteners, hardware misc. $60–$150
Gravel/paver foundation materials ~30–40 sq ft base $150–$500
Electrical (breaker, wire, disconnect, conduit — installed by electrician) 1 circuit $500–$2,000

Itemized Construction Budget

Category Budget build Mid-range build
Foundation (gravel/paver pad) $150–$300 $400–$800
Framing + exterior shell + roof $700–$1,100 $1,300–$2,200
Insulation + vapor barrier + air gap $250–$400 $400–$600
Interior paneling + benches $550–$1,000 $1,100–$1,800
Door $150–$300 $300–$450
Heater + stones + ventilation $450–$800 $900–$1,400
Electrical (licensed electrician) $500–$900 $1,000–$2,000
Approximate total (materials + electrician, rounded) ~$3,000–$5,000 ~$5,500–$9,000

A pared-down build that reuses an existing insulated wall or an indoor space can land near the bottom of these ranges; a fully outdoor, cold-climate cabin with cedar throughout lands near the top. The single biggest swings are the interior wood species, the heater tier, and how far the electrical run is from your panel.

Cost methodology

These figures are planning estimates, not quotes. Material prices reflect 2026 retail ranges cross-checked against published itemized DIY-sauna cost breakdowns — for example, mineral wool around $1.30–$1.35 per sq ft and cedar tongue-and-groove around $3–$6 per sq ft (see Sources) — with foundation costs anchored to published concrete and paver cost data (Angi), and the electrical range reflecting typical regional licensed-electrician pricing that varies mainly with distance from the panel and whether trenching is required. Lumber is volatile and regional, so confirm current pricing at your local supplier and get quotes before finalizing your budget.

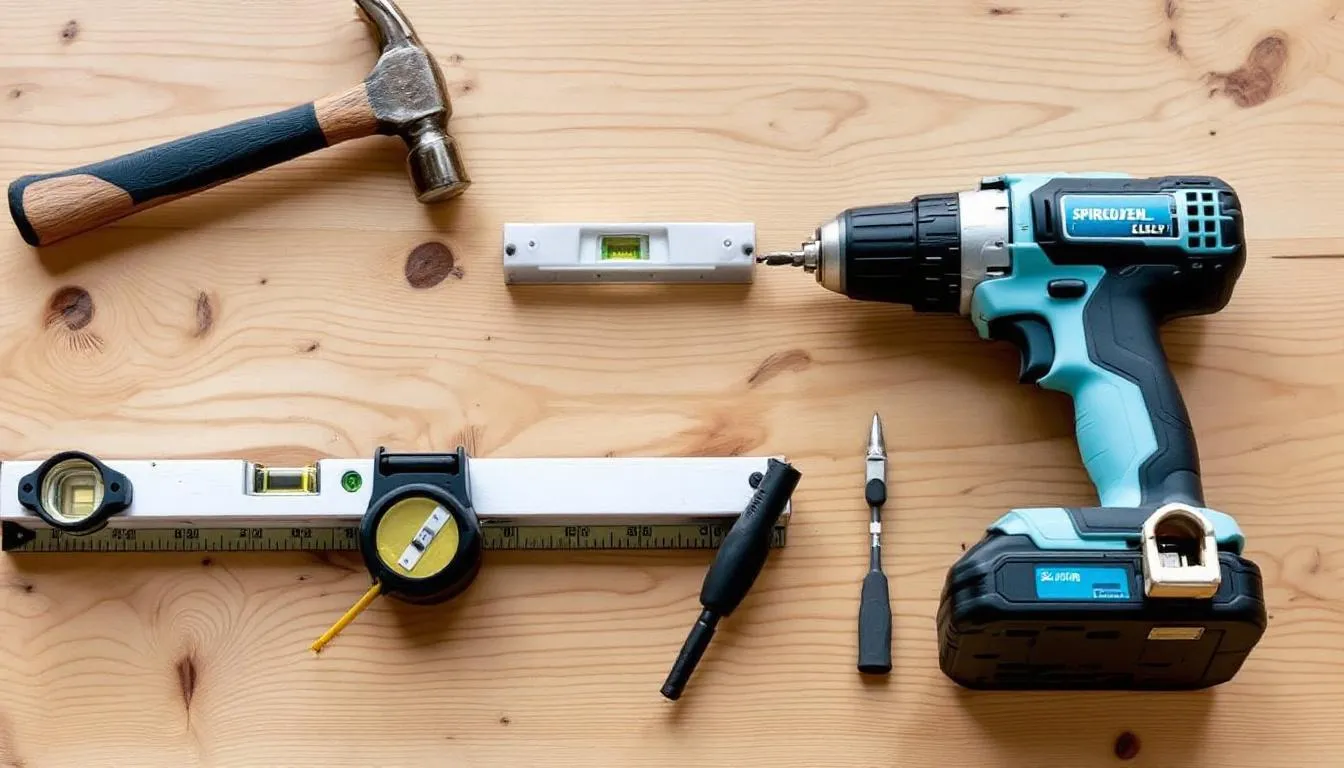

Tools Required

  • Tape measure, chalk line, speed square, and a 4-ft level
  • Circular saw or miter saw; a table saw is helpful for ripping paneling
  • Framing nailer or drill/impact driver with exterior screws
  • Finish/brad nailer for tongue-and-groove paneling (stainless or galvanized nails only)
  • Staple gun and utility knife for insulation and foil vapor barrier
  • Hole saw or jigsaw for vent openings
  • Tamper (hand or plate compactor) and a rake for the gravel base
  • Caulk gun, foil tape, and safety gear (glasses, gloves, dust mask)

Step 1: Choose the Site and Check Permits

Pick a spot that is close to the house and your electrical panel (a shorter run is cheaper to wire and nicer to reach in winter), sits on ground that drains away rather than pooling, and clears any required setback from property lines. Before ordering anything, call your local building department: most jurisdictions require a permit for the new 240V circuit, and many exempt a freestanding accessory structure under roughly 100–120 sq ft from a building permit (a 4×6 is about 24 sq ft) — but confirm your local code and any HOA rules. For a fuller walkthrough of permits, setbacks, and HOA approval, see our outdoor sauna installation guide.

Step 2: Build the Gravel or Paver Foundation

A sauna must sit on a level, solid, well-draining base — never on bare dirt or grass, which wicks moisture into the floor and framing. For a budget backyard build, the most cost-effective base is a compacted gravel or paver pad: excavate a few inches, add about 6 inches of compacted ¾" gravel, level it, and set pavers or a treated sleeper frame on top, sloping the ground around it to shed water. A poured concrete slab is more durable and permanent but adds cost and cure time; it is optional for a build this size. Whatever the base, keep the finished floor above surrounding grade so rain drains away from the structure.

Step 3: Frame the Floor, Walls, and Roof

Build a simple platform floor (or set your sill directly on the pavers with a treated bottom plate), then frame the four walls with 2×4 studs at 16" on center. Two details matter for a sauna: first, add solid blocking in the stud bays where your benches and heater bracket will attach, so you are screwing into wood rather than just paneling; second, frame the rough opening for your prehung door and for the two vents now. Frame a slightly sloped (shed) roof so rain runs off, and plan a modest roof overhang to protect the walls. Sheath the exterior in ½" plywood or OSB. Keep the interior ceiling around 7 ft to keep usable heat down at bench level.

Step 4: Install Insulation and Sauna Foil (the Wall Assembly)

Getting the wall layers in the right order is what separates a sauna that heats fast and lasts decades from one that grows mold in a season. Working from the outside in for an outdoor build, the assembly is: exterior cladding → weather-resistive barrier → sheathing → 2×4 studs with insulation → aluminum foil vapor barrier → furring-strip air gap → tongue-and-groove paneling. For additional detail on each layer, see the Haven of Heat sauna insulation guide and homesauna.com's waterproofing and insulation guide.

  • Insulation: friction-fit mineral wool between the studs — roughly R-13 in the walls and R-19 or better in the ceiling, since heat rises. Mineral wool is preferred over fiberglass for its higher heat tolerance; the cost difference on a sauna this size is small.
  • Vapor barrier: staple aluminum foil (foil-faced, not polyethylene bubble wrap, which can melt) to the warm interior side of the insulation on walls and ceiling — not the floor. Overlap all seams 2–3 inches and seal them with foil tape, and overlap the ceiling foil down onto the wall foil so the moisture envelope is continuous. Seal every penetration (vents, any electrical box) with foil tape. Keep to a single vapor barrier so the wall can still dry to the exterior.
  • Air gap: fasten ¾" furring strips over the foil before paneling. This gap lets the foil reflect radiant heat and lets the back of the paneling dry, which most sauna suppliers recommend.

Step 5: Install the Interior Paneling

Panel the ceiling first, then the walls, fastening tongue-and-groove boards to the furring strips with stainless steel or hot-dipped galvanized nails (standard nails corrode and stain the wood at sauna temperatures). Leave about a ¼" gap at the floor for expansion and drainage. Choose a low-resin, splinter-free softwood: western red cedar and hemlock are popular, while aspen, basswood, thermo-aspen, or clear spruce are budget-friendly and perform well. A money-saving strategy is to use a cheaper species (spruce or hemlock) on the ceiling, where no one touches it, and reserve nicer wood for the walls and bench surfaces. Do not apply ordinary paint, polyurethane, or conventional wood finishes to the interior; use only a treatment specifically formulated for sauna interiors, if any.

Step 6: Build the Benches

Two tiers make the space flexible: a lower bench around 18 inches high and an upper bench around 36 inches high, each about 18–20 inches deep for comfortable sitting or reclining. Build the frames from standard 2×4 lumber (hidden structure, so no need for premium wood), with supports every 12–16 inches, and lag-bolt them into the wall blocking you added in Step 3. Top them with boards spaced about ¼" apart for airflow and drainage, using a low-density, low-resin species such as aspen or abachi for the seating surface so bare skin does not contact scalding-hot, resinous wood. Build the frames robustly and lag-bolt them into the wall blocking so they carry a seated adult without flexing; if you need a specific load rating, have the bench framing detailed by a builder.

Step 7: Install Intake and Exhaust Ventilation

Ventilation keeps the air fresh and the heat even, and the correct layout depends on whether you use mechanical or natural ventilation. Following Harvia's guidance (Ventilation in the sauna) and the Haven of Heat ventilation guide:

  • Supply (intake) vent (about 2–4" diameter): if you use a mechanical exhaust fan, place the supply vent above the heater (roughly 20 inches above the stones); if you rely on natural/gravity ventilation, place it below or next to the heater. Do not aim incoming air at the heater's temperature sensor.
  • Exhaust vent (about twice the supply diameter): place it low, near the floor, on the wall opposite and as far from the heater as practical, with an adjustable damper. This "high-supply, low-exhaust" path washes fresh air across the bathers rather than short-circuiting straight to the vent.
  • Air changes: aim for roughly six air changes per hour. Add an optional drying vent (kept closed during use), or simply leave the door open to dry out after a session.
  • Electric vs. wood-fired: an electric heater has no chimney draft, so mechanical ventilation (a small inline exhaust fan) is commonly recommended. Wood-fired saunas may use gravity or a properly designed mechanical system, but an unbalanced exhaust can create negative pressure that interferes with chimney draft and pulls smoke into the room — so follow the stove and chimney manufacturer's ventilation instructions and have the design reviewed by a qualified installer.

Step 8: Install the Door and Exterior Cladding

Hang a prehung, gasketed sauna door that opens outward. Any glass in the door or a window must be safety glazing — tempered or laminated, not ordinary glass. Under the International Residential Code, glazing in doors (R308.4.1) and glazing in and around saunas, steam rooms, and other wet areas (R308.4.5) are designated hazardous locations that require safety glazing, so buy a door built for sauna use rather than fitting standard glass. On the outside, install your weather-resistive barrier over the sheathing, then the exterior cladding — cedar, thermowood, or charred (shou sugi ban) siding are durable, low-maintenance choices — leaving the roof overhang to protect the walls.

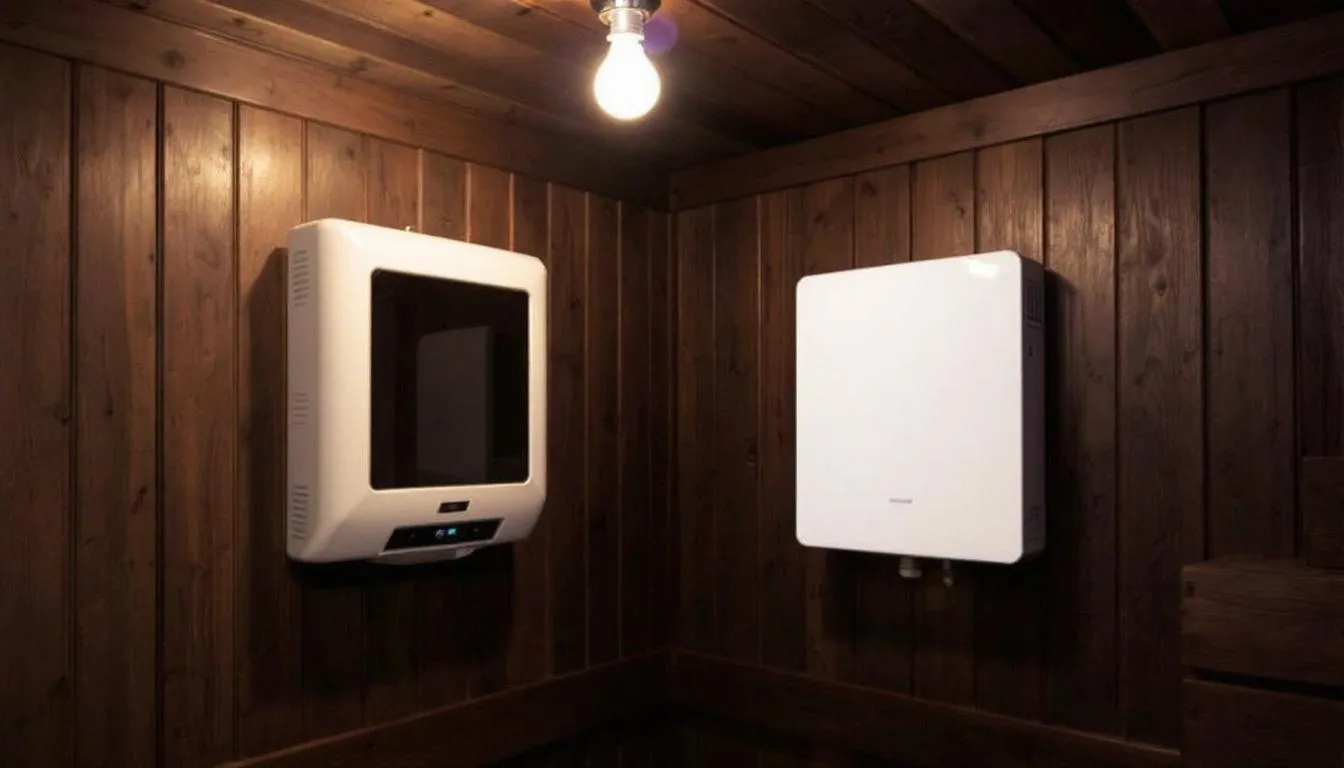

Step 9: Have the Heater Professionally Connected

Size the heater by volume, then adjust for real conditions. Harvia's method is about 1 kW of heater power per 1 m³ of sauna volume, with additions for surfaces that store or lose heat: each 1 m² of glass or other non-insulated surface adds the equivalent of about 1.2 m³ (uninsulated log walls use a factor of 1.5), per Harvia's sizing guidance and sauna calculator.

Worked example for our 4×6×7 build: the base volume is 168 cu ft (4.76 m³). A typical glass sauna door is about 1.4 m² of glass, which adds roughly 1.4 × 1.2 ≈ 1.7 m³, bringing the adjusted volume to about 6.4 m³. At ~1 kW/m³ that points to about a 6 kW heater for a well-insulated build (for instance, a Harvia KIP 6 kW, whose rated room-size range comfortably covers this room). For a fully outdoor sauna in a cold climate, size up — commonly to 8 kW — because exterior exposure and cold ambient temperatures raise the demand. Always confirm your specific heater's rated minimum–maximum volume in its manual, and avoid choosing a model whose range puts your room at the extreme low or high end.

The circuit is not a DIY job. A 6 kW heater draws approximately 25 amps at 240V and an 8 kW heater approximately 33 amps, but the required breaker, conductors, disconnect, and protection must come directly from the exact heater's North American installation manual and your local code — models and configurations vary, so treat the amperage as a starting point, not a universal breaker spec. A standard 120V household circuit cannot power a traditional hot-room heater; these are 240V appliances. As a general reference, baseline copper branch-circuit sizing runs 12 AWG for 20A and 10 AWG for 30A per the National Electrical Code (NFPA 70) 240.4(D), but the electrician sizes the actual conductors for your amperage, run length, and conditions. Improper wiring creates serious fire, shock, inspection, and insurance risks — this is the one step never to cut.

Step 10: Inspect and Test the Sauna

Before first use, confirm the heater's required clearances to walls and benches per its manual, verify the temperature sensor placement, check that vent dampers open and close, and have any required electrical inspection completed. For the first firing, run the heater through a full heat-up with the room empty (some heaters off-gas manufacturing residue on the first burn), watch for even heating, and confirm the room reaches roughly 150–195°F. Then leave the door open afterward to dry the interior.

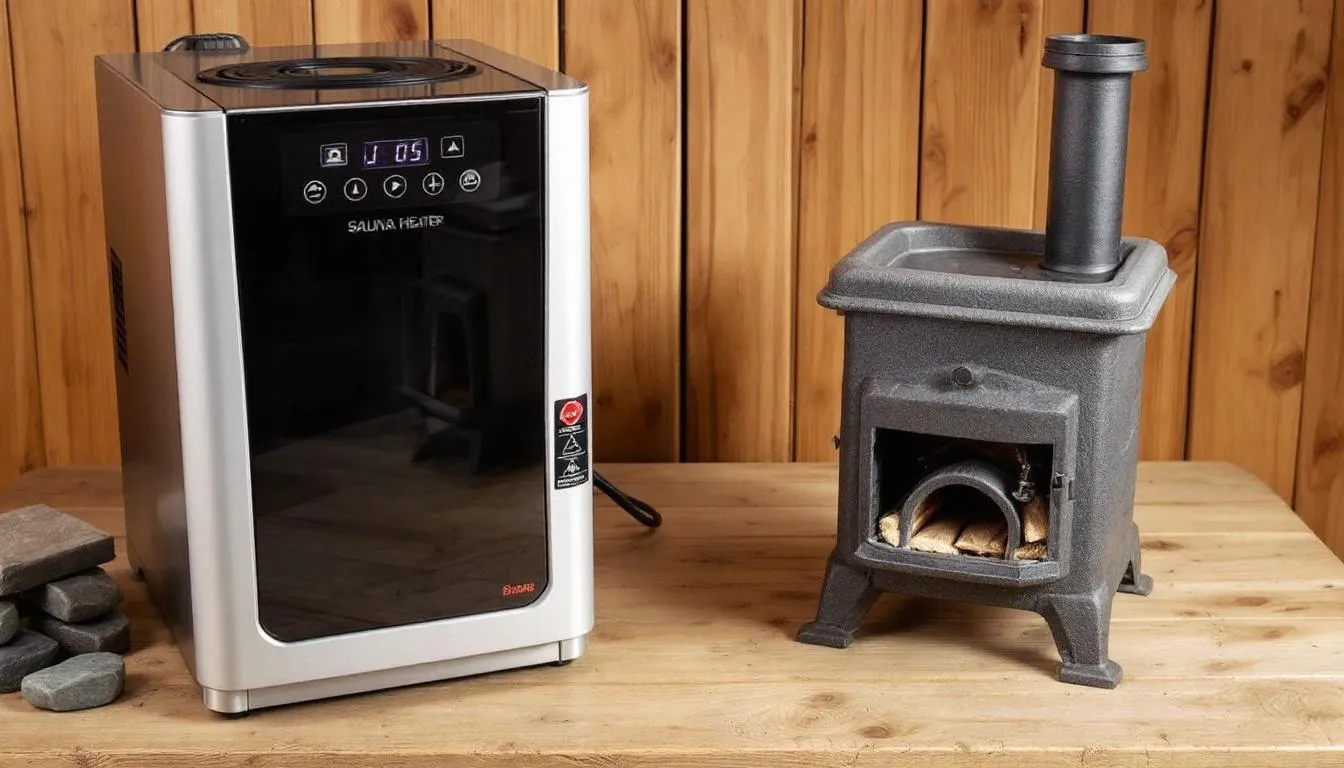

Electric vs. Wood-Fired: Choosing Your Heat Source

The build above assumes an electric heater, the simplest budget path. A wood-fired stove is a different project:

  • Electric: needs a dedicated 240V circuit and a licensed electrician, but no chimney; pairs well with mechanical ventilation; sized by room volume as above. Best for most backyard builds with panel access.
  • Wood-fired: needs no electricity (good for off-grid), but requires a code-compliant chimney/flue with correct clearances to combustibles, floor and wall heat shields, and ventilation (gravity or a properly designed mechanical system) set up per the stove and chimney manufacturer's instructions. Have the chimney, clearances, and ventilation reviewed by a qualified installer or certified chimney professional, and budget ongoing firewood (roughly $5–$15 per session, or $200–$400 per cord). It delivers the traditional crackling-fire experience many builders want.

Where to Save and Where Not to Cut Costs

Safe places to save: use a budget-friendly wood species (spruce, hemlock, aspen), especially on the ceiling where no one touches it; use standard 2×4 lumber for hidden bench frames; choose a mid-range heater with built-in controls instead of a premium unit with a separate control panel (the heat output is identical); and do the carpentry yourself.

Where not to cut: insulation (mineral wool costs little more than fiberglass and drives most of the performance); the vapor barrier (foil with taped seams is what prevents thousands of dollars in future rot); the door (a poorly sealed door leaks more heat than the savings justify); heater sizing (an undersized heater never reaches temperature and wears out faster); and above all the electrical work, which must be done by a licensed electrician.

DIY Timeline

Phase Typical time
Planning, permits, HOA, material sourcing 1–2 weeks (mostly waiting)
Foundation (gravel/paver; longer if pouring concrete) 1–2 days
Framing floor, walls, roof + sheathing 1–2 days
Insulation, foil vapor barrier, air gap 1 day
Interior paneling 1–2 days
Benches Half a day
Ventilation Half a day
Door + exterior cladding + roofing 1–2 days
Electrician installs and connects the circuit 1–3 days (scheduled)
Inspect and test Half a day

For most owner-builders, the hands-on work spans roughly two to four weekends, plus the electrician's separately scheduled visit.

Frequently Asked Questions

How much does it cost to build a backyard sauna on a budget?

A basic 4×6 two-person sauna typically costs about $3,000–$5,000 for a budget build or $5,500–$9,000 for a mid-range build, including materials and licensed electrical work; most owner-built projects land around $4,000–$7,000. A stripped-down indoor conversion that reuses an existing insulated wall can cost less; a fully outdoor cabin with cedar throughout and a premium heater costs more.

What size heater does a 4×6 sauna need?

For a well-insulated 4×6×7 room with a glass door, about a 6 kW electric heater; for a cold-climate outdoor build, size up to around 8 kW. Sizing is roughly 1 kW per cubic meter of volume plus an allowance for glass and uninsulated surfaces. Always verify against your specific heater's rated volume range and manual.

Can I wire the sauna heater myself?

No. A sauna heater needs a dedicated 240V circuit installed by a licensed electrician per the heater's manual and local code. Improper wiring creates serious fire, shock, inspection, and insurance risks.

What wood should I use inside?

A low-resin, splinter-free softwood: cedar and hemlock are popular; aspen, basswood, thermo-aspen, and clear spruce are budget-friendly. Use a low-density species like aspen or abachi for bench tops so bare skin does not touch scalding, resinous wood, and avoid knotty pine on seating surfaces.

Do I really need a foil vapor barrier?

Yes. Aluminum foil on the warm interior side of the insulation, with seams overlapped and foil-taped, keeps moisture out of the wall cavity and reflects heat back into the room. Skipping or improperly installing it is a leading cause of mold and rot.

Should I build electric or wood-fired?

Electric is simpler and pairs with mechanical ventilation but needs a 240V circuit. Wood-fired needs no electricity and suits off-grid sites, but requires a code-compliant chimney with proper clearances, heat shields, and ventilation (gravity or a properly designed mechanical system) set up per the stove and chimney manufacturer's instructions. Choose based on panel access, your climate, and whether you want a live fire.

Does the sauna door need special glass?

Yes. Glass in the door and any window must be safety glazing (tempered or laminated). The International Residential Code designates door glazing and sauna/wet-area glazing as hazardous locations requiring safety glazing, so buy a door built for sauna use rather than fitting ordinary glass.

Do I need a permit?

Usually yes for the electrical work; the structure itself is often exempt when it is a freestanding accessory building under roughly 100–120 sq ft (a 4×6 is about 24 sq ft), but this varies by jurisdiction. Call your local building department and check any HOA rules before you start.

Sources

Last updated: July 2026. Material prices are 2026 planning ranges that vary by region and supplier; verify local pricing and obtain quotes. Electrical, structural, chimney, and code requirements are governed by your local authority and your heater's manual and should be verified and, where required, performed by licensed professionals.
