Why do Cold Plunge Tubs Leak? Seal Failure Points and Fixes

Cold plunge tubs leak due to seal failures at fittings, hoses, drains, or pump components, not because the tub shell cracks. Temperature swings, pressure changes, and normal wear degrade O-rings and gaskets over time. But most leaks are inexpensive and easy to fix once properly diagnosed. This guide explains where leaks start, how to pinpoint the exact source, which repairs are DIY-friendly, and how proactive seal maintenance prevents future problems.

Key Takeaways

• Most cold plunge leaks come from worn or misaligned seals, not structural damage
• Many leaks are simple DIY fixes involving O-rings, clamps, or unions
• Proper diagnosis saves time and prevents unnecessary repairs
• Regular seal inspections and replacements reduce leak risk significantly
• High-quality construction and maintenance guidance lower long-term failure rates

How to Respond Immediately to a Cold Plunge Tub Leak

• Turn off power to the chiller and pump immediately
• Stop using the tub until you’ve diagnosed the source
• Mark the wet area with painter’s tape so you can track whether it grows
• Dry all surfaces completely—you can’t trace a leak through existing moisture

How to Locate Main Leak Areas on a Cold Plunge Tub

Any point where water changes direction or passes through a wall, whether that’s the cold plunge tub for home shell, a hose junction, or the chiller housing is a potential leak path. Knowing the geography of your system helps you diagnose faster.

Primary External Leak Zones

• Hose connections at tub, pump, and chiller inlets/outlets
• Quick-connect fittings and threaded unions
• Drain valve assemblies and bottom drains
• Tub shell seams, liner welds, and bulkhead penetrations

Primary Internal Chiller Leak Zones

• Mechanical seals at the internal circulation pump
• Threaded heat exchanger unions
• Condensation drain fittings
• Bulkhead fittings where pipes exit the chiller housing

A simple mental map helps you trace the water path from your tub outlet, through the hose, into the chiller, through the pump and heat exchanger, and back out to the tub inlet. Every transition point is a seal point.

Sun Home Saunas cold plunge tubs are engineered to minimize external joints and use high-grade gaskets at every connection. But even premium systems benefit from routine checks. Seals are consumable parts in any water circulation setup.

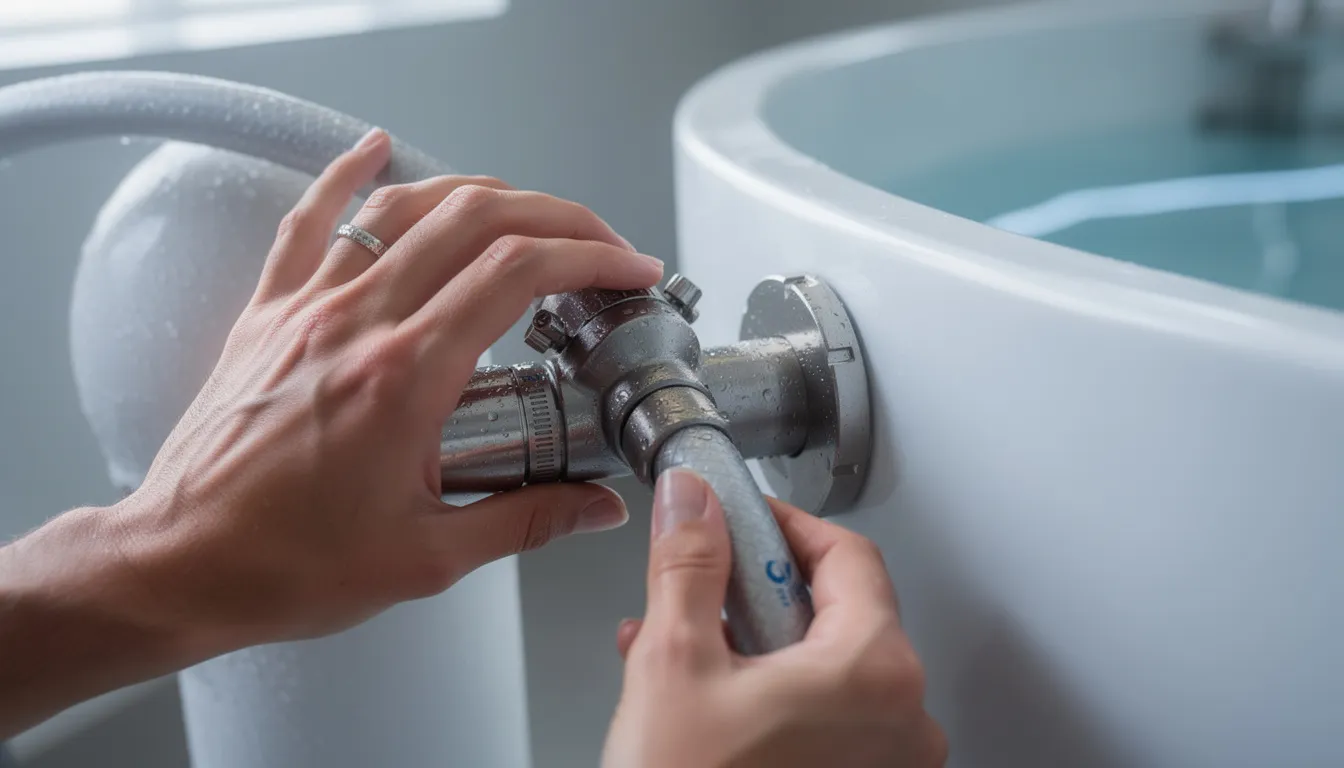

Hose, Fitting, and Union Seal Leaks

Hoses and their seals are the number-one source of leaks in both portable and fixed cold plunge setups. They’re constantly under pressure, exposed to temperature extremes, and frequently the first components to show wear.

·       Common Hose Types and Connectors

Component	Typical Material	Common Failure Mode
Flexible spa hose	PVC or reinforced vinyl	Cracking at barb insertion points
Braided hose	Vinyl with nylon braid	Kinking that restricts flow
Insulated hose	Foam-wrapped PVC	Moisture trapped under insulation
Barbed fittings	Plastic or brass	Clamp loosening in cold
Threaded unions	PVC or ABS	Cross-threading and O-ring damage
Quick-connects	Plastic with dual O-rings	O-ring displacement from thermal mismatch

Signs of Hose and Fitting Leaks

• Slow drips at the lowest point of fittings (gravity pulls water down after shutdown)
• White mineral trails around threads indicating evaporated water
• Water only appearing when the pump is running (pressure-driven leaks)
• Weak water flow that suggests air entering through a compromised seal

Major Causes to Check

• Overtightening: Users often crank down on plastic unions, crushing O-rings or deforming the sealing faces. Hand-tight plus 1/4 turn is usually sufficient
• Cross-threading: Forcing misaligned threads damages both surfaces and creates permanent leak paths
• Thermal mismatch: Plastic hoses expand 0.1–0.2% per degree Celsius while metal fittings contract, creating micro-gaps in cold operation

How to Diagnose and Fix

• Power off the system and close any isolation valves
• Gently loosen the suspect union and inspect the O-ring for nicks, flattening, or hardening
• Clean threads and sealing surfaces with a dry cloth
• Replace damaged O-rings with correct-size replacements (same material and temperature rating)
• Reassemble hand-tight, then add 1/4 turn—no more

Replacement Schedule for Hoses and Unions

Usage Level	Inspection Frequency	O-Ring/Gasket Replacement
Light (2–3 sessions/week)	Every 6 months	Every 18–24 months
Moderate (4–6 sessions/week)	Every 3 months	Every 12–18 months
Heavy (daily or multiple sessions)	Monthly	Every 6–12 months

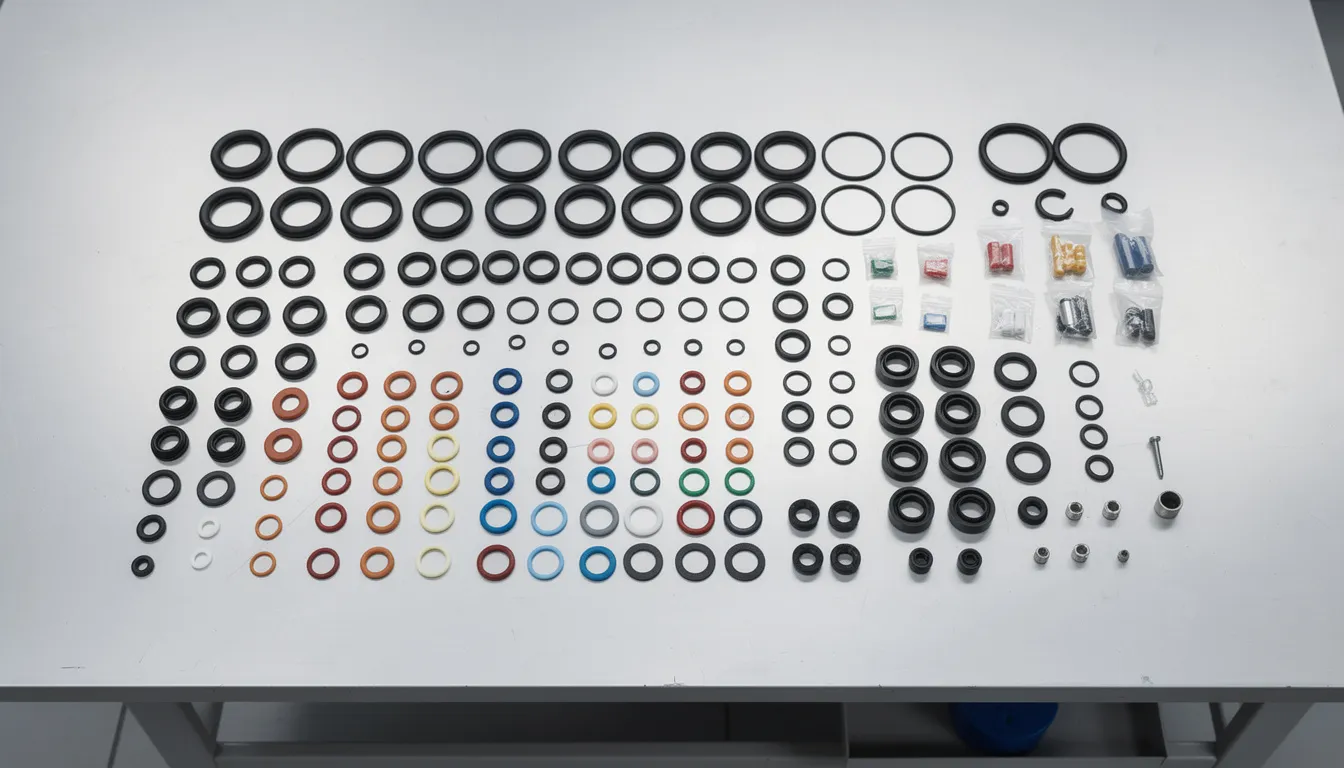

Sun Home Saunas provides seal kits matched to specific tub and chiller models, ensuring you get the correct size and material for your system.

Common Clamp and Barb Connection Problems

Barb-and-clamp fittings are common on budget cold plunge tubs and DIY setups. They work well initially but often fail when water temperatures drop below 45°F.

Why Clamps Fail in Cold Weather

• Worm-drive clamps can loosen as rubber hose material shrinks, creating micro-gaps around the barb ridges
• Cheap stainless clamps may have burrs that cut into hose material over time
• Hose stiffening reduces the seal between barb and inner hose wall

How to Fix Clamp Issues

• Check clamp position—it should sit behind the last barb ridge, not on smooth hose
• Retighten evenly, applying moderate pressure (avoid overtightening, which cuts into the hose)
• If the hose shows compression marks or cuts, replace both the hose section and clamp
• Consider upgrading to high-quality 316 stainless steel clamps and reinforced hose if you experience recurring leaks at the same joint

Expected Component Life Span

• Replace rubber hoses every 2–3 years with regular use
• Replace immediately if you notice stiffness, cracking, or whitening of the material
• Stainless clamps can last 5+ years if not corroded

Drain Valve, Bulkhead, and Floor Penetration Leaks

Factory drain valves, bottom drains, and side bulkhead fittings penetrate the tub wall and rely on flat gaskets or silicone seams. These are high-risk leak points because they interrupt the tub’s watertight shell. Research from service logs indicates 15–20% of leaks trace to drain assemblies, particularly after draining cycles when gaskets reseat improperly.

Common Drain and Bulkhead Issues

• Overtightened bulkhead nuts: Crushing flat gaskets causes them to extrude and fail
• Impact damage: Moving the tub can crack the fitting or break the seal
• Degraded thread sealant: Tape or paste compounds break down after repeated thermal cycles
• Debris in the gasket seat: Small particles prevent proper sealing

How to Test for Drain Leaks

• Fill the tub above the drain level with the system off
• Leave for 30–60 minutes
• Check underneath the tub and around the cabinet base for seepage
• Mark any wet spots and monitor for growth

Home Fix Process

• Drain the tub below the fitting level
• Remove the bulkhead assembly (usually unscrews from both sides)
• Clean all old sealant from threads and gasket surfaces
• Install a new gasket (or apply fresh silicone sealant for threaded drains)
• Re-tighten evenly by hand—avoid using tools that can crush gaskets

Replacement Schedule

Component	Inspection Frequency	Proactive Replacement
Drain valve gaskets	Every 6 months	Every 2 years
Bulkhead fittings	Every 6 months	Every 3–4 years
Thread sealant	At each disassembly	Reapply with every gasket change

Avoid standing or stepping directly on drain hardware. Point loads can crack plastic fittings or compromise the seal, especially on portable tubs. Sun Home Saunas uses high-compression gaskets and robust drain assemblies rated for repeated thermal cycling, but routine inspection remains essential for long-term leak prevention.

Tub Shell, Liner, and Seam Leaks

Understanding your tub’s construction helps you diagnose and repair shell-related leaks. Different materials fail differently.

Common Shell Types

Construction	Pros	Leak Vulnerabilities
Rigid acrylic/fiberglass	Durable, repairable	Hairline cracks from impacts, seam delamination
Rotomolded polyethylene	Seamless, flexible	Stress cracks at fittings, UV degradation
Soft PVC liner	Lightweight, portable	Punctures, seam weld failures
Inflatable	Most portable	Seam splitting, valve failures

What Causes Structural and Liner Leaks?

• Point impacts from tools, ice chunks, or stepping on edges
• Dragging the tub over rough surfaces (especially soft liners)
• Ice expansion if water is allowed to freeze solid in non-rated tubs
• UV degradation of cheap PVC materials left in direct sun

How to Locate a Shell or Liner Leak

• Fill with static water (pump and chiller off)
• Mark the waterline with tape
• Leave for 12–24 hours
• Measure any water level drop
• Inspect the corresponding area inside and outside the tub

Repair Options by Damage Type

• Small liner punctures: PVC repair kits with patches and adhesive
• Hairline acrylic cracks: Two-part marine epoxy, sanded smooth
• Deeper cracks or delamination: Professional repair or manufacturer warranty claim

Any rapid water loss—more than 1–2 inches per hour—suggests a larger structural problem. Contact manufacturer support before attempting major fixes that could void your warranty.

Lifespan Guide

• High-quality rigid tubs: 10+ years with proper care
• PVC liners and inflatables: Evaluate annually, replace every 3–5 years under frequent use

How to Prevent Liner and Seam Failures

Portable PVC and inflatable-style cold plunge systems require extra attention to prevent leaks. These units trade durability for convenience, so prevention is critical.

Ground Protection

• Always place tubs on a smooth, level, debris-free surface
• Use a ground mat or protective base to reduce abrasion from below
• Avoid concrete with exposed aggregate or rough textures

Avoid Overstressing the Material

• Don’t overfill. Water sloshing over seams weakens welds over time
• Don’t overinflate air chambers, especially in cold weather when materials lose flexibility
• Lift rather than drag when repositioning

Temperature Management

• Keep water above freezing unless your tub is specifically rated for ice conditions
• Drain tubs before extended cold weather if you can’t maintain temperature control
• Avoid adding large quantities of ice that could create sharp edges against the liner

Seasonal Maintenance

• Conduct annual seam inspection before peak-use seasons
• Look for whitening, stretching, or micro-cracks along high-stress corners
• Replace liners at first sign of brittleness—a failed liner during use means water damage

Internal Chiller and Pump Seal Leaks vs. Condensation

Moisture around your water chiller could be harmless condensation or a true internal leak. Misdiagnosis is common—and costly if you order unnecessary repairs.

·       What is Condensation?

When a chiller holds water around 39–45°F in a warm, humid environment (above 70% relative humidity), the metal housing and pipes sweat like a cold drink on a summer day. This is normal physics, not a system failure.

How to Distinguish a Leak From Condensation

• Place a dry pan or tray under the chiller
• Wipe all surfaces completely dry
• Run the unit for 30–60 minutes
• Observe the moisture pattern

Reading the Results

Observation	Likely Cause	Action
Steady dripping at a specific joint	Active leak	Repair or replace seal
General surface beading, no concentration	Condensation	Improve ventilation
Water in electrical compartment	Critical leak	Disconnect immediately, call service
Puddle only after pump runs	Pressure-driven leak	Check pump and union seals

Common Internal Leak Origins

• Mechanical seal at the internal pump shaft
• Threaded heat exchanger unions
• Cracked internal hoses from freeze damage
• Loose factory clamps (can occur during shipping)

Most internal chiller leaks, especially on sealed refrigeration circuits should be handled by authorized technicians. DIY attempts on refrigerant systems can void warranties and create safety hazards.

Condensation Management Tips

• Use the chiller’s condensate drain outlets if equipped
• Provide airflow around the unit (avoid enclosing in unventilated cabinets)
• Consider a small dehumidifier in the room during humid months
• Check that the chiller sits level so condensate drains properly

Inspection Cadence

• Check for chiller moisture weekly during heavy use
• Have a professional service internal seals every 24–36 months in daily-use setups

Pump Shaft Seals and O-Ring Wear

Continuous water circulation and cold temperature operation stress the pump’s shaft seal and internal O-rings. These are wear items with predictable lifespans.

Early Warning Signs of Pump Seal Failure

• Water pooling under the pump body
• Rust forming on mounting bolts or brackets
• Fine spray marks inside the cabinet
• Gurgling sounds indicating air entering through the seal
• Pump speed anomalies (some chillers report Hz readings—normal is 300–330 Hz)

Why Pump Seals Fail

Pump seals experience dynamic pressure up to 1.5 bar during operation. Research shows failure rates double after freeze exposure below 0°C, as ice expansion damages the mechanical seal faces. Running the pump with low water levels causes cavitation that accelerates wear significantly.

Repair and Replacement

• Many circulation pumps use replaceable shaft seal kits ($20–50)
• Installation takes approximately 30 minutes with basic tools
•  Lubricate new seals with silicone grease during installation
• Schedule replacement every 3–5 years in heavy home use, or at the first sign of moisture

Keep a pump seal kit on hand, especially if you’re a high-frequency plunger. Having the part ready minimizes downtime when a leak starts.

Seal Maintenance and Replacement Schedules

Seals are consumable parts—much like tires or brake pads. The smartest approach is proactive replacement based on time and usage rather than waiting for a leak to occur.

·       Usage-based Framework

Usage Level	Definition	Annual Plunge Hours
Light	2–3 plunges/week, 10–15 min each	~50–75 hours
Moderate	4–6 plunges/week, 15–20 min each	~100–150 hours
Heavy	Daily or multiple sessions	~200+ hours

 ·       Recommended Replacement Intervals

Component	Light Use	Moderate Use	Heavy/Commercial Use
External O-rings	24 months	12–18 months	6–12 months
Hose clamps	36 months	24 months	12–18 months
Flexible hoses	36 months	24–30 months	18–24 months
Drain valve gaskets	36 months	24 months	12–18 months
Pump shaft seals	5 years	3–4 years	2–3 years
Bulkhead fittings	5+ years	4–5 years	3–4 years

 Annual Spring Checklist

• Replace hose gaskets at inlet and outlet
• Inspect and tighten drain assemblies
• Verify bulkhead tightness on all penetrations
• Check chiller housing for moisture trails
• Clean or replace filters to maintain proper water flow
• Test all connections under pressure for 20–30 minutes

Performance-based Replacement Triggers

Replace seals immediately if you observe:

• Visible cracks greater than 0.5mm
• Pressure loss greater than 10% (measured by flow rate decline)
• Hardening or loss of elasticity when compressed
• Any visible deformation or extrusion

Sun Home Saunas offers seal kits and maintenance guidance tailored to their cold plunge tubs and chillers, helping you keep your system leak-free for years with minimal guesswork.

How to Systematically Find and Fix a Leak (Step-by-Step)

When you notice water where it shouldn’t be, follow this checklist to diagnose and resolve the issue the same day.

Step 1: Safe Shutdown

• Power down the tub, chiller, and pump
• Unplug from the GFCI outlet
• Mop up all standing water
• Dry surfaces thoroughly with towels

Step 2: Static Leak Test

• Refill tub to normal operating level
• Leave the system completely off
• Observe for 15–30 minutes
• If water appears, you have a shell, liner, or static drain leak (not pressure-related)

Step 3: Pressure Leak Test

• If Step 2 showed no leak, run the pump and chiller
• Inspect each joint in sequence from tub to chiller and back
• Use a dry paper towel or tissue to detect tiny drips at unions and fittings
• Pay attention to the order: inlet fitting, hose connections, pump housing, outlet fitting

Step 4: Isolate and Repair

• When you find the leak point, mark it with painter’s tape
• Shut the system down
• Disassemble the joint carefully
• Inspect and clean threads and seating surfaces
• Replace O-rings or gaskets as needed
• Reassemble hand-tight plus 1/4 turn

Step 5: Verification Test

• Refill to operating level
• Run under normal pressure for 20–30 minutes minimum
• Re-check the repair site and all other connections
• Only resume normal use after confirming the fix holds

Photograph leak points before and after repair. If you can’t tell whether a problem is DIY-fixable or needs professional service, Sun Home Saunas support staff can review your photos and provide guidance.

Preventing Future Leaks and Protecting Your Investment

Leak prevention is part of a broader home wellness maintenance plan. A few simple habits protect your cold plunge system for years.

Installation and Placement

• Keep your cold plunge on a level surface (chillers leak if off-kilter by more than 2 degrees)
• Use a vibration-dampening mat under the chiller to reduce stress on fittings
• Ensure adequate drainage around the unit in case of minor leaks or condensation

Environmental Protection

• Shield from direct sun to prevent UV degradation of plastics and rubber
• Protect from extreme freezing if your system isn’t freeze-rated
• Avoid impacts during moves—lift rather than slide, and disconnect hoses first

Monthly 10-minute Inspection Routine

• Check around each fitting for moisture or mineral deposits
• Verify clamp and union tightness (hand-tight test)
• Look underneath the tub for any pooling
• Inspect hoses for kinks, cracks, or discoloration
• Clean or rinse external filters (extends seal life by reducing pump strain)

Water Chemistry Matters

Following manufacturer guidelines for sanitizers protects more than water quality. Over dosing harsh chemicals like chlorine accelerates rubber and plastic seal degradation. Maintain sanitizer levels at recommended ranges (typically 3–5 ppm chlorine or equivalent) to balance hygiene and material longevity.

Summary

Cold plunge tub leaks are rarely catastrophic and almost always trace back to seals, fittings, or valves exposed to cold, pressure, and wear. By following a systematic diagnosis process and replacing seals proactively, most leaks can be resolved quickly and affordably. Understanding your tub’s leak points protects both your equipment and your wellness routine. Need help or replacement parts? Contact Sun Home Saunas for model-specific seal kits and expert support to keep your plunge running leak-free.

FAQ

How do I know if my cold plunge leak is serious enough to stop using the tub?

Stop using the tub if you see continuous dripping, pooling water, or moisture near electrical components. Condensation or a single post-use drip is less urgent but should still be diagnosed before your next session.

Can I use generic hardware-store O-rings and gaskets, or do I need brand-specific parts?

Generic O-rings can work if size, material, and temperature rating match. However, brand-specific kits are safer, better suited for cold operation, and reduce repeat leaks or warranty concerns.

Is it normal to see a little water around my chiller in humid weather?

Yes. Condensation is normal when cold water meets warm, humid air. Wipe surfaces dry and observe. Condensation forms evenly. Leaks drip consistently from a specific fitting or joint.

Will adding ice directly into the tub damage my seals or shell?

Occasional ice use is usually safe, but repeated freezing stress or sharp ice can damage seals or liners especially in non–ice-rated tubs. Inspect seals more often if you add ice regularly.

How long should a well-maintained cold plunge tub stay leak-free?

With proper maintenance and seal replacement, premium tubs can operate 8–10+ years without major leaks. Seal replacement is normal upkeep. Lower-quality tubs often develop leaks much sooner.
