The Equinox is Sun Home's full-spectrum infrared sauna line, manufactured by Sunlighten (Amplify series). Available in 2-Person and 3-Person configurations, the Equinox combines patented SoloCarbon® far-infrared heaters with full-spectrum panels for a complete infrared experience. Built-in chromotherapy and a premium Bluetooth sound system round out the cabin.
The Equinox runs on a standard 120V 20A circuit. No 240V wiring required. Do NOT install on a GFCI or AFCI breaker — these will trip during normal operation. See the electrical section below.
Key Features
- Full-spectrum infrared: far, mid, and near-infrared wavelengths delivered together
- SoloCarbon® heaters — 99% effective far-infrared output at 9.4 microns (the wavelength most readily absorbed by skin)
- Built-in chromotherapy (colored light therapy)
- Premium Bluetooth audio sound system with streaming support
- Virtually zero EMF output
- Wood options: Basswood (standard) or Eucalyptus (premium)
- Operating range: up to ~155°F (typical operating ~150°F)
- Session time: 10–40 minutes

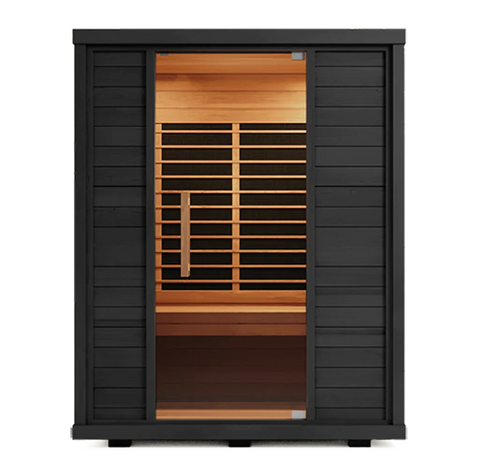

Equinox 2-Person
Specifications
- Exterior (W × D × H): 50.9" × 45.9" × 77.7" (includes 2" feet)
- Interior (W × D × H): 45.4" × 39.9" × 70.3"
- Bench: 45.2" × 20.2" × 19.5"H
- Door Opening: 28"
- Heaters: 4 FIR + 2 Full Spectrum (500W each)
- Electrical: 120V / 1,880W / 15.67A
- Plug Type: NEMA 5-20P (dedicated 20A circuit required)
- Weight (Basswood): 456 lbs
- Weight (Eucalyptus): 541 lbs
Equinox 3-Person
Specifications
- Exterior (W × D × H): 62.3" × 45.9" × 77.7" (includes 2" feet)
- Interior (W × D × H): 56.8" × 39.9" × 70.3"
- Bench: 56.6" × 20.2" × 19.5"H
- Door Opening: 28"
- Heaters: 5 FIR + 2 Full Spectrum (500W each)
- Electrical: 120V / 1,880W / 15.67A
- Plug Type: NEMA 5-20P (dedicated 20A circuit required)
- Weight: 546 lbs
Note: both Equinox sizes draw the same wattage and use the same electrical setup. The 3-Person model has one additional FIR heater to maintain coverage across the larger cabin width.
Equinox 2 vs Equinox 3 at a glance
| Equinox 2 | Equinox 3 | |
|---|---|---|
| Exterior Width | 50.9" | 62.3" |
| Interior Width | 45.4" | 56.8" |
| Bench Width | 45.2" | 56.6" |
| FIR Heaters | 4 | 5 |
| Full Spectrum Heaters | 2 | 2 |
| Weight (Basswood) | 456 lbs | 546 lbs |
| Electrical | 120V / 20A | 120V / 20A |
Electrical Requirements
Both Equinox models share the same electrical setup:
- Voltage: 120V
- Wattage: 1,880W
- Amperage: 15.67A operating draw on a 20A circuit
- Plug: NEMA 5-20P (the wide-T-slot variant of a standard household outlet)
- Circuit: Dedicated 120V 20A — do not share with other appliances
Do NOT install the Equinox on a GFCI or AFCI breaker. The full-spectrum heaters can cause GFCI/AFCI breakers to trip during normal operation. A standard dedicated 20A breaker is the correct setup.
For full electrical requirements across the entire Sun Home lineup, see Electrical Requirements Overview.
Installation Clearances
- Wall clearance: 4" minimum on all sides
- Ceiling clearance: 12" minimum above the sauna
- Recommended room size: 7 × 6 ft with an 8 ft ceiling
- Power cord: 10 ft, exits from the back left of the roof (facing the sauna)
Heating Performance
- Maximum temperature: ~155°F (typical operating temperature ~150°F)
- Heat-up rate to 135°F: roughly 1°F per minute from room temperature
- Heat-up rate above 135°F: 3–5 minutes per degree as the cabin approaches peak temp
- Time to peak temperature: ~2 hours of continuous operation to reach the upper end of the range
For most sessions, plan a 15–20 minute preheat to reach a comfortable operating temperature (130–145°F), then enjoy a 30–40 minute session.
Care and Cleaning
Both Basswood and Eucalyptus are naturally stable hardwoods well-suited to repeated heat cycles. To keep your Equinox in great shape:
- Wipe down the interior bench and floor with a clean towel after each session.
- Use the Sun Home Eco-Friendly Sauna Cleaner for deeper cleans — avoid solvents or bleach.
- Air out the cabin with the door open for 10–15 minutes after a session.
- Keep liquids off the heater panels.
Where to Buy
Both Equinox models are available on the Sun Home Saunas site:
For help deciding between the Equinox and our other sauna lines, see Choosing the Right Sauna. For all electrical details, see Electrical Requirements Overview.
